| Quantity: | |
|---|---|
GE01-P003-18NNB-Y01
国威通
MX23A18SF1
| Rated Voltage: 500V/DC | Protection Level: IP67&IPX9K |
| Rated Current: 3~7A | Flame retardant grade: UL94 V-0 |
| Plug in/out(Times): 50 | MaterialMaterial: PBT+Metal AlloyMetal Alloy |
| Working temperatureTemperature Range: -40℃~-125℃ | Number of coresPositions: Double row 18Pin signal connector: 18Pin Double row 26Pin signal connector: 26Pin |
| Applicable cable Cable Range: 0.3mm²~1.25mm² | Cable OD OD Of cable: Φ1.4~Φ2.3mm |
MBMS, BMS, navigation application system, vehicle-mounted unit, etc.

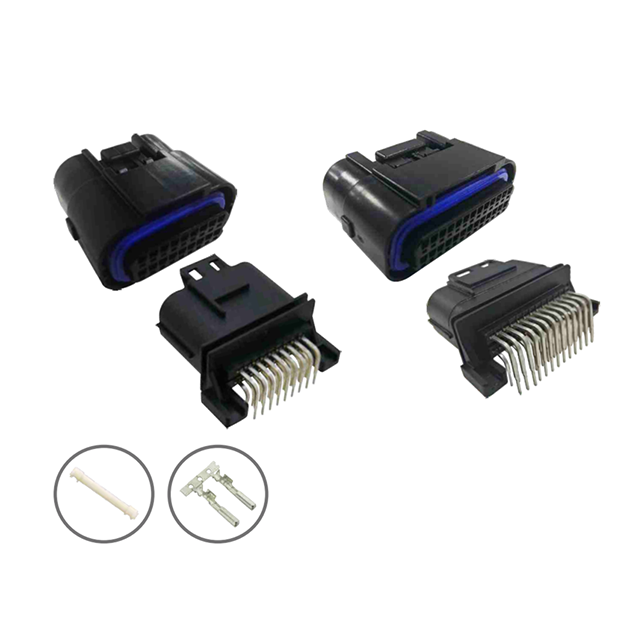

| NameName | Number of Pins | Material number P/N | RemarksRemarks |

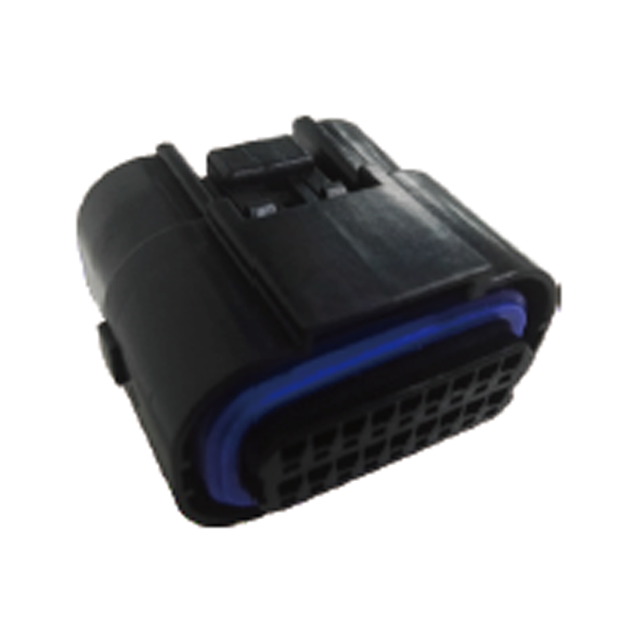

| Signal connector-waterproof, double row plug | 18 | GE01-P003-18NNB-Y01 | One side waterproof |
| Signal connector-waterproof, double row socket | 18 | GE01-F003-18NNB-Y01 | One side waterproof |
| Signal connector-waterproof, double row plug | 26 | GE01-P003-26NNB-Y01 | One side waterproof |
| Signal connector-waterproof, double row socket | 26 | GE01-F003-26NNB-Y01 | One side waterproof |
| Signal connector-waterproof, double row terminal | / | S06-0016S-NA-N | One side waterproof |
| Signal connector-waterproof, double row blind plug | / | H13-0001-NA-N | One side waterproof |
| Rated Voltage: 500V/DC | Protection Level: IP67&IPX9K |
| Rated Current: 3~7A | Flame retardant grade: UL94 V-0 |
| Plug in/out(Times): 50 | MaterialMaterial: PBT+Metal AlloyMetal Alloy |
| Working temperatureTemperature Range: -40℃~-125℃ | Number of coresPositions: Double row 18Pin signal connector: 18Pin Double row 26Pin signal connector: 26Pin |
| Applicable cable Cable Range: 0.3mm²~1.25mm² | Cable OD OD Of cable: Φ1.4~Φ2.3mm |
MBMS, BMS, navigation application system, vehicle-mounted unit, etc.
| NameName | Number of Pins | Material number P/N | RemarksRemarks |
| Signal connector-waterproof, double row plug | 18 | GE01-P003-18NNB-Y01 | One side waterproof |
| Signal connector-waterproof, double row socket | 18 | GE01-F003-18NNB-Y01 | One side waterproof |
| Signal connector-waterproof, double row plug | 26 | GE01-P003-26NNB-Y01 | One side waterproof |
| Signal connector-waterproof, double row socket | 26 | GE01-F003-26NNB-Y01 | One side waterproof |
| Signal connector-waterproof, double row terminal | / | S06-0016S-NA-N | One side waterproof |
| Signal connector-waterproof, double row blind plug | / | H13-0001-NA-N | One side waterproof |
